Shot Size in Shot Peening: Selection, Distribution and Process Control

How to select and control a particle-size distribution without treating nominal designation as proof of intensity, coverage or component performance

Shot size in shot peening is a controlled particle-size distribution, not one exact diameter. The distribution influences particle population, acceleration, access to component features, surface texture, intensity response and coverage development. Selection must therefore connect the media material and size range with the actual equipment, geometry, component material and required evidence. A nominal media designation alone does not qualify the process.

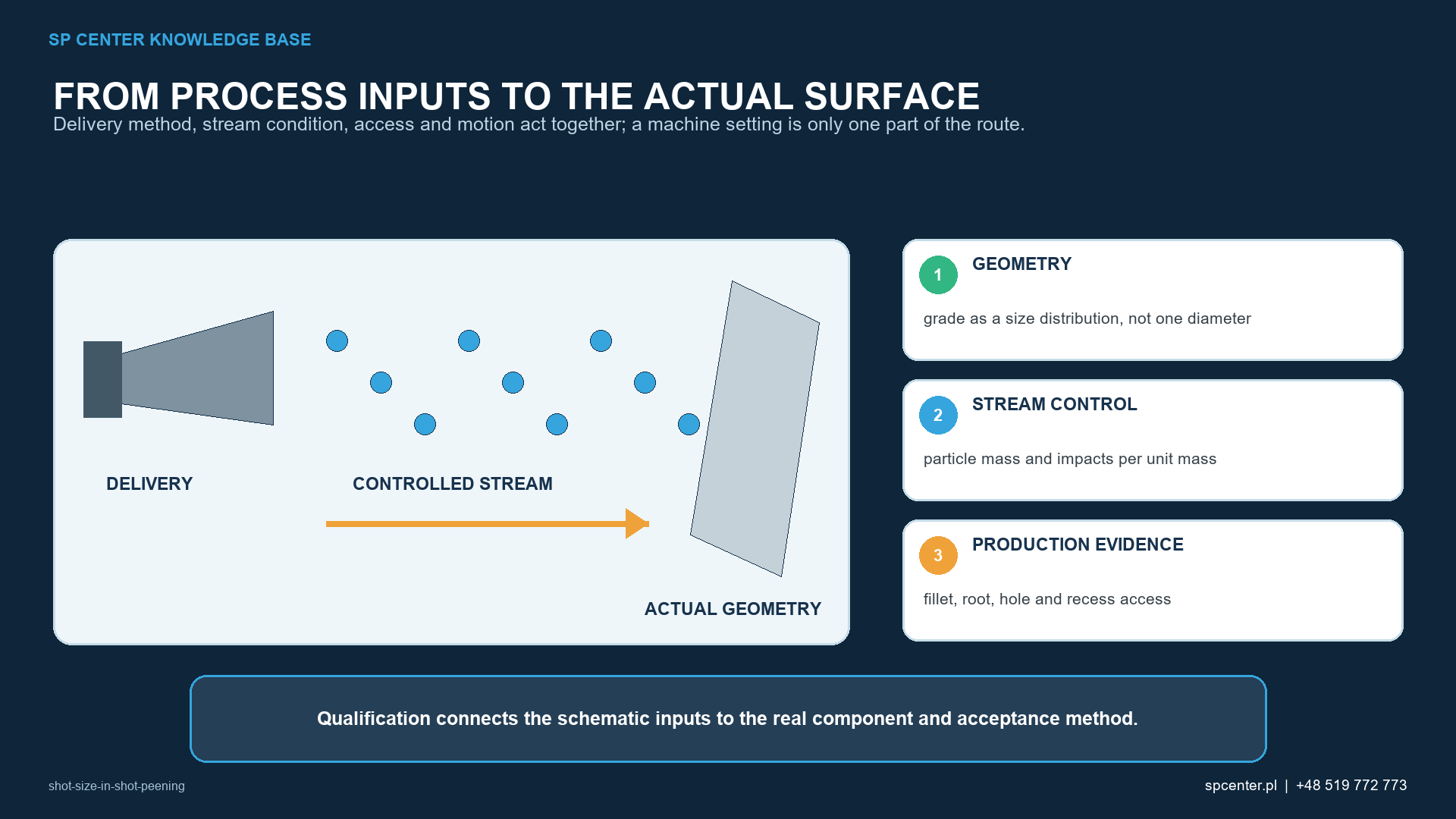

Figure 1. Shot size is a controlled particle-size distribution, not one exact particle diameter.

How does shot size influence the peening process?

Size-related effect	Why it changes	Required engineering check
Particle mass and impact response	For the same material, particle mass changes strongly with characteristic diameter, while actual velocity also depends on the equipment	Qualify the resulting stream through the required intensity and component evidence
Number of impacts	A given media mass contains a different particle population as size changes	Establish coverage exposure on representative geometry
Access and shadowing	Large particles may not reach narrow radii, grooves, holes or shielded features in the same way	Verify physical access and feature-specific coverage
Surface texture and local deformation	Contact size, material, hardness, velocity and angle act together	Confirm roughness, damage and dimensional limits on the actual material
Depth of component response	Stress and plastic-strain distributions depend on the complete impact condition	Use component-specific validation when depth or performance is specified

Table 1. These are interacting effects, not one-direction rules. A size change cannot be evaluated without the actual media material, equipment, velocity or wheel condition, flow, angle, exposure and component geometry.

How should shot size be selected?

Selection input	Question	Evidence
Governing requirements	Is a media designation, material or size distribution already invoked?	Drawing, process specification, customer supplement and approved source list
Component geometry	Can the selected population reach every required feature without unacceptable boundary effects?	Access study, fixture and stream geometry, representative coverage
Component material and surface	Is the resulting roughness and deformation acceptable for the alloy, hardness and starting condition?	Representative surface inspection and material-specific qualification
Required intensity and coverage	Can the selected media produce the specified process outputs within a stable operating range?	Saturation-curve or verification evidence and coverage development
Downstream route and service	Can embedded media, surface texture or material removal affect cleaning, coating, dimensions or performance?	Downstream-process and component-validation evidence where required

Table 2. If the drawing or specification already invokes a media designation, substitution requires the prescribed technical approval. If selection remains open, development must be based on representative parts and measurable acceptance criteria.

Why is access as important as intensity?

A media population can generate the required Almen intensity at a holder and still fail to reach a narrow fillet, groove, hole or masked transition. Physical access, stream shadowing, rebound and local impact angle must be reviewed on the component. Coverage evidence on an easy flat surface cannot automatically release a difficult feature.

Conversely, selecting smaller media only for access can change roughness, exposure required for coverage, media breakdown and the depth of the component response. The qualification route should establish a stable operating window rather than optimize a single output.

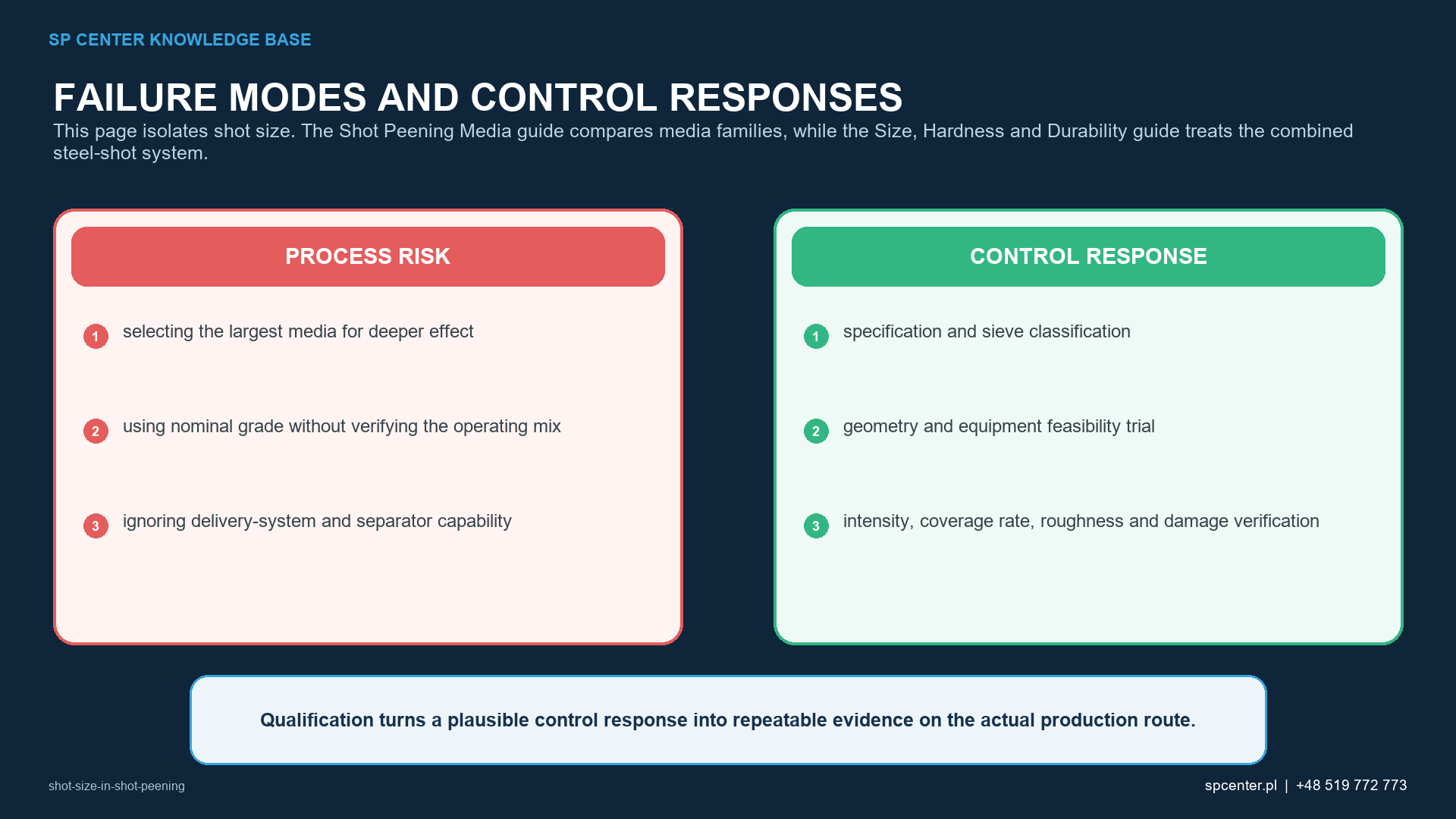

Figure 2. Size selection must connect media material and distribution with geometry, access, intensity, coverage and allowable surface condition.

How do incoming-lot and operating-mix controls differ?

Control stage	Primary purpose	Typical record
Supplier lot	Confirm identity and the invoked delivered size distribution	Certificate, lot, receiving sample and acceptance result
Machine charge	Prevent wrong designation, mixing and unapproved substitution	Issue, line-clearance and charge record
Operating mix	Detect wear, breakage, classifier drift and replenishment imbalance	Representative in-process sample, sieve result and trend
Process verification	Confirm the qualified peening stream after size-related changes	Almen and monitored-parameter evidence required by the process plan
Component acceptance	Confirm treatment of actual drawing-defined surfaces	Coverage, boundaries, surface condition and invoked dimensions

Table 3. Receiving acceptance proves the delivered sample at the time of receipt. It does not prove the size distribution after the media has circulated, worn, broken, been replenished and passed through the classifier.

How should the size distribution be measured?

Measurement element	Control	Failure mode
Sampling	Defined location, timing, quantity and clean equipment	Segregated or convenient sample does not represent the population
Sample reduction	Approved splitting route preserving the distribution	Fine or coarse particles are preferentially lost
Sieve or analytical equipment	Applicable mesh or measurement system, status, cleanliness and method	Damaged sieve, blocked opening, wrong unit or unverified instrument
Test execution	Defined charge, duration or analysis settings and complete mass balance where required	Overloading, loss of particles or selective re-test changes the result
Reporting	Raw fractions, units, calculation, acceptance and sample identity	Only a nominal designation is reported without the measured distribution

Table 4. For cast shot, the applicable SAE J444 route may be relevant when invoked; other media families use their applicable detail specifications. The controlled method and contractual hierarchy determine the required equipment, fractions and limits.

Sampling is the first measurement. A representative operating-mix sample should be linked to the actual stream, machine and time window. Sample reduction must preserve the population before sieving or other approved analysis. Raw fractions and mass balance should remain available where required so that an acceptance value can be reconstructed.

What changes can invalidate an approved size route?

A different media designation or supplier route, material or density change, classifier or sieve change, replenishment strategy, machine or nozzle or wheel configuration, fixture, access or component material can affect representativeness. Change control should determine the required receiving tests, intensity verification, coverage development, surface inspection and requalification.

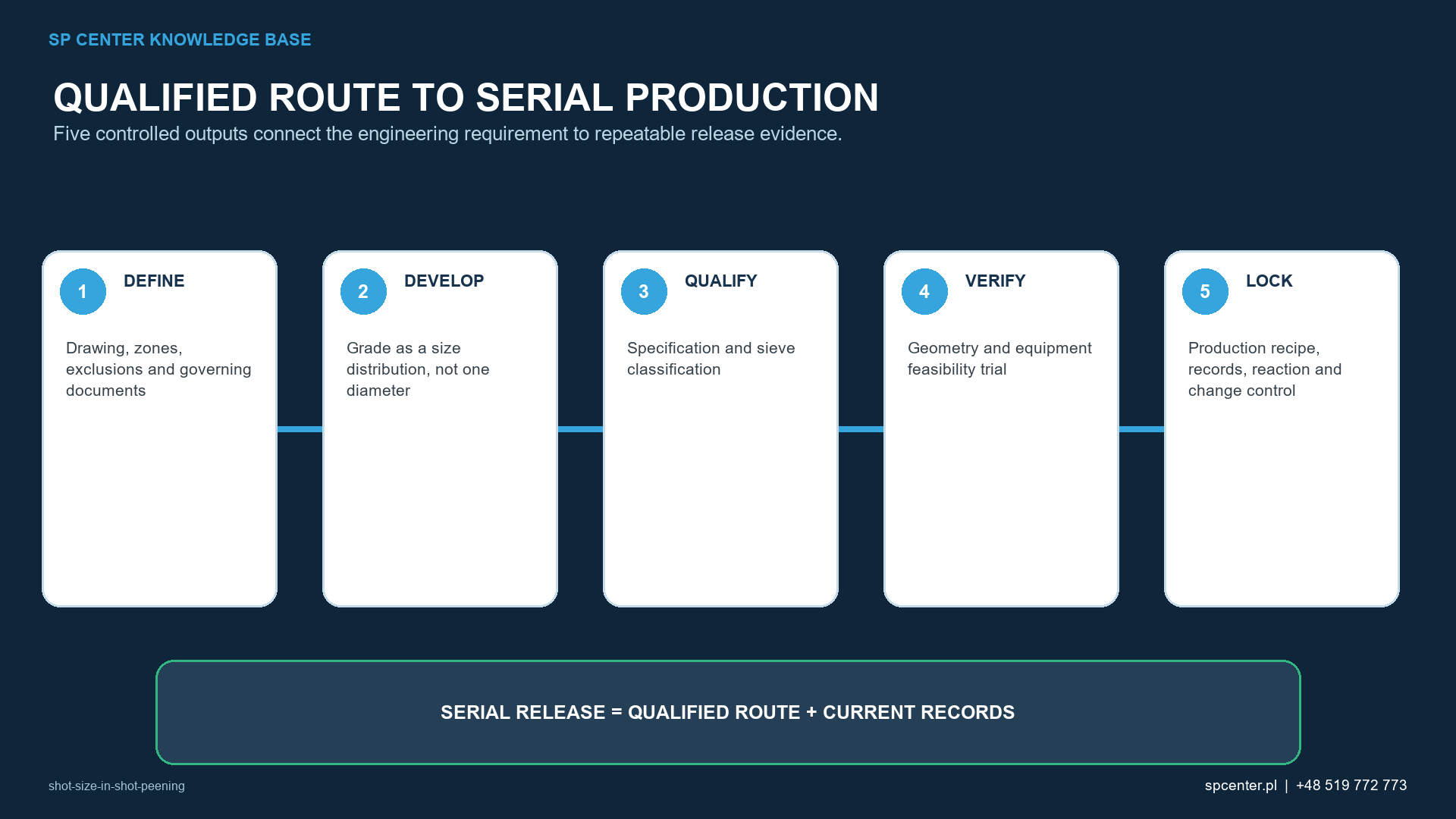

Figure 3. Incoming-lot and operating-mix size control support the qualified process but do not replace component acceptance.

Which findings require containment?

Finding	Possible cause	Required response
Excess undersize	Wear, breakage, classifier or replenishment problem	Contain, confirm, assess intensity and surface effects, restore the operating mix
Excess oversize	Wrong addition, damaged screen, supplier or segregation error	Stop use, verify identity and access or damage risk, contain product
Mixed media designation	Handling or changeover failure	Open contamination and traceability investigation
Correct size result but intensity drift	Velocity, flow, equipment or media material changed	Investigate the complete peening-stream configuration
Correct intensity but size result outside limit	Different population still produces similar standardized response	Do not release on intensity alone; follow media and product disposition

Table 5. Correcting the operating mix does not automatically dispose of components processed since the last acceptable size evidence. The product assessment must consider intensity history, coverage, surface condition, material and customer requirements.

What records demonstrate size control?

Applicable media general and detail specifications, drawing and customer revisions.
Supplier, designation, material, lot, certificate and receiving acceptance.
Storage, issue, machine charge, replenishment, classification and disposal.
Sampling location, timing, quantity, reduction and sample identity.
Raw sieve or analytical fractions, units, calculations, equipment status and acceptance.
Trends, deviations, containment, restoration, re-verification and product disposition.

Frequently asked questions

Is shot size one exact particle diameter?

No. Production media are controlled as a distribution defined by the invoked media specification and test method. The commercial designation does not mean every particle has one diameter.

Does larger shot always create higher intensity?

No universal rule applies. Particle mass, actual velocity, material, hardness, equipment and stream settings act together. Intensity must be determined or verified for the qualified configuration.

Does smaller shot always improve coverage?

Smaller media may increase impact population and access some features, but coverage also depends on flow, velocity, angle, motion, exposure and geometry. It must be established on representative component surfaces.

Can the same media size be transferred to a different material or geometry?

Not on designation alone. Access, roughness, intensity, coverage, surface damage and component response must remain representative under the governing qualification route.

Why must the operating mix be tested after receiving acceptance?

Wear, breakage, replenishment and classification change the recirculating distribution. The machine population can therefore differ from the original supplier lot.

What happens after an out-of-limit size result?

The affected process and product window should be contained as required, the result confirmed, the cause investigated, the media system restored and product disposition completed before release.

Key takeaways

Shot size is a controlled distribution, not one particle diameter.
Size selection must connect geometry, access, material, surface limits, intensity and coverage.
Receiving-lot and operating-mix controls are different evidence layers.
Correct intensity does not prove a conforming size distribution; a conforming distribution does not prove component coverage.
Out-of-limit results require both media-system restoration and product-window disposition.
